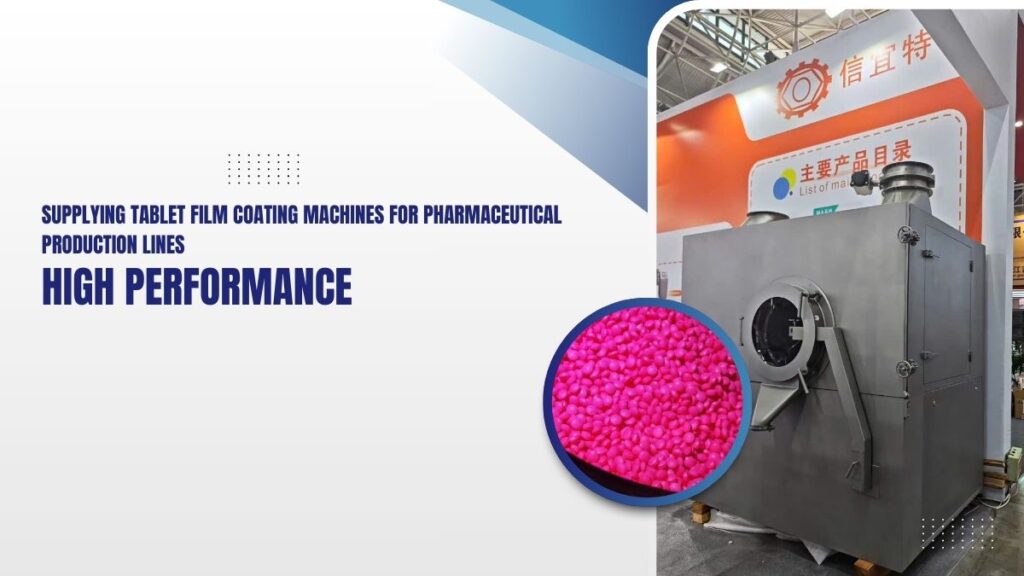

Supplying Tablet Film Coating Machines for Pharmaceutical Production Lines – Tin Nghi Dac Pharmaceutical Equipment Co., Ltd.
In modern pharmaceutical manufacturing, tablet coating technology plays a critical role in improving drug stability, appearance, and controlled release properties. Choosing reliable equipment ensures consistent product quality and efficient production.
Tin Nghi Dac Pharmaceutical Equipment Co., Ltd. is a trusted supplier of tablet film coating machines for pharmaceutical production lines in Vietnam. The company provides high-quality equipment designed to meet international pharmaceutical manufacturing standards.
Professional Supplier of Pharmaceutical Equipment
Tin Nghi Dac specializes in supplying advanced machinery used in pharmaceutical manufacturing plants, laboratories, and pharmaceutical research facilities. With a focus on quality and performance, the company delivers reliable solutions that help manufacturers optimize production processes.
The tablet film coating machines supplied by Tin Nghi Dac are designed for efficient and uniform coating of tablets, ensuring improved product appearance and protection from environmental factors such as moisture and light.
What is a Tablet Film Coating Machine?
A tablet film coating machine is a specialized pharmaceutical device used to apply a thin polymer-based film onto tablets. This coating process serves multiple purposes, including:
-
Protecting active ingredients from humidity and oxidation
-
Masking unpleasant taste or odor
-
Improving tablet appearance and branding
-
Enhancing drug stability and shelf life
-
Providing modified or controlled drug release
Modern pharmaceutical production lines rely on advanced coating technology to achieve precise and uniform coating for each batch.
Production coating
Coating
APPLICATIONS: The C-series high-efficiency coater is primarily used for coating in the pharmaceutical and related industries. It can perform organic solvent-based or aqueous coating for tablets (micro-tablets), pills, candies, etc. Coating functions include, but are not limited to, sustained/controlled release, taste-masking, moisture protection, and aesthetic enhancement. The C-series is currently the most efficient coating equipment with the best uniformity. Tests show it can increase efficiency by approximately 50% compared to traditional equipment, and its uniformity meets the requirements for drug-layering content uniformity in small-specification products.
PRINCIPLE: The tablet cores perform continuous, regular tumbling motions within a clean, enclosed rotating drum. The C-series coating pan is equipped with multiple sets of ventilated 3D baffles, which significantly improve ventilation and mixing/guiding capabilities. As the pan rotates, the material forms a “waterfall flow.” The coating liquid is automatically sprayed onto the upper-middle section of this waterfall through an atomizing system. Clean hot air passes through the waterfall flow and is exhausted through the ventilation holes of the drum. This ensures the coating liquid on the core surface dries quickly and uniformly, forming a solid and smooth film. Under the same air temperature, higher ventilation capacity leads to stronger drying ability and higher coating efficiency.
FEATURES:
-
Slotted Pan Holes: The drum features elongated slot holes, providing a higher opening rate under the same area conditions.
-
Ventilated 3D Baffles: Multiple sets of ventilated 3D baffles provide a larger total opening area and lower air resistance.
-
Conical Ventilation: The conical drum design with perforations provides greater drying capacity through enhanced ventilation.
-
Seamless Integration: The mixing baffles and the drum are seamlessly connected, ensuring dead-zone-free flow and superior coating uniformity.
-
Online Discharge: No extra discharge device is needed; the machine achieves easy and convenient discharge via reverse rotation.
-
Superior Atomization: Independent liquid lines for spray guns with uniform flow; atomizing pressure and fan pressure are independently adjustable for stable performance.
-
Universal Spray Bracket: Multi-directionally adjustable to adapt to changes in tablet load and drum speed.
-
Anti-clogging Structure: The spray gun’s anti-clogging design ensures continuous coating, shortens process time, and saves coating materials.
-
Precision Monitoring: Display and control of negative pressure in the pan, hot air flow rate, and material temperature.
-
Online Cleaning (CIP): Optional CIP system available to reduce labor intensity.
-
CGMP Compliance: Key process parameters feature memory and printing functions. Technical parameters are quantitatively displayed and controlled to ensure batch-to-batch consistency.
Technical specifications and key parameters of the test model:
| Model Name | Labcoating I | Labcoating II | Labcoating III | Labcoating IV | Labcoating V |
|---|---|---|---|---|---|
| Capacity (kg/batch) | 0.2-10 | 0.2-5 | 0.2-3 | 0.2-1.5 | 0.05-0.8 |
| Coating Pan Specs (mm) | φ215, φ265, φ300 φ350, φ380, φ430, φ480 |
φ215, φ265, φ300 φ350, φ380, φ430 |
φ215, φ265, φ300 φ350 |
φ215, φ265, φ300 | φ215s, φ215, φ265 |
| Filtration System | Primary, Intermediate, HEPA | Intermediate | Intermediate | Intermediate | — |
| Main Motor (kw) | 0.75 | 0.4 | 0.4 | 0.4 | 0.4 |
| Inlet Fan Speed (kw) | 100-3000 (0.37kw 0.75kw (Explosion-proof)) | 100-3000 (0.37kw 0.75kw (Explosion-proof)) | 100-3000 (0.37kw 0.75kw (Explosion-proof)) | 100-3000 (0.37kw 0.75kw (Explosion-proof)) | 0.2KW |
| Exhaust Fan Speed (kw) | 100-3000 (1.5KW) | 100-3000 (1.5KW) | 100-3000 (1.5KW) | 100-3000 (1.5KW) | 100-3000 (0.75kw) |
| Heating Power (kw) | 10 | 7 | 6 | 4 | 3 |
| Power Supply | 380V/50Hz Three-phase 5-wire | 220V/50Hz Single-phase 3-wire | |||
| Air Source Pressure (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Air Consumption (m³/min) | 0.6 | 0.4 | 0.4 | 0.4 | 0.4 |
| Dimensions (mm) | 850×1250×1855 | 820×1230×1750 | 810×1240×1670 | 810×1160×1590 | 960×730×910 |
| Machine Weight (kg) | 550 | 420 | 370 | 330 | 180 |
Specifications for the test planter body:
| No. | Coating Pan Name | Quantity | Capacity (kg/batch) |
|---|---|---|---|
| 1 | Coating Pan (215mm-S) | 1 set | 0.05 ~ 0.4 |
| 2 | Coating Pan (215mm) | 1 set | 0.2 ~ 0.4 |
| 3 | Coating Pan (265mm) | 1 set | 0.3 ~ 0.6 |
| 4 | Coating Pan (300mm) | 1 set | 0.5 ~ 1.0 |
| 5 | Coating Pan (350mm) | 1 set | 1.0 ~ 3.0 |
| 6 | Coating Pan (380mm) | 1 set | 3.0 ~ 5.0 |
| 7 | Coating Pan (480mm) | 1 set | 6.0 ~ 10 |
Production specifications and main technical parameters:
| Model Name | Pilot Coating I | Pilot Coating II | C75 | C150 | C250 | C350 | C450 | C600 |
|---|---|---|---|---|---|---|---|---|
| Capacity (kg/batch) | 1.0-50 | 1.0-25 | 75 | 150 | 250 | 350 | 450 | 600 |
| Pan Speed (rpm) | 3-20 | 3-20 | 3-20 | 2-15 | 2-12 | 2-10 | 2-10 | 2-10 |
| Main Motor Power (kw) | 1.5 | 0.75 | 1.5 | 2.2 | 3.7 | 3.7 | 5.5 | 7.5 |
| Clean Hot Air System | Range: Room Temp – 80°C (±1°C), Filtration: 0.5μm HEPA, meeting Class 100,000 clean zone requirements | |||||||
| Inlet Fan Power (kw) | 1.5 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 |
| Exhaust Fan Power (kw) | 2.2 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Dust Removal Air Volume (m³/h) | 1500 | 1500 | 1500 | 3000 | 4500 | 6000 | 8000 | 10000 |
| Overall Dimensions (mm) | 1340×1500×2430 | 1280×1410×2280 | 1200×1000×1800 | 1600×1400×2000 | 1800×1600×2000 | 2000×1800×2380 | 2000×2200×2380 | 2000×2400×2380 |
| Main Body Weight (kg) | 800 | 700 | 600 | 1000 | 1300 | 1700 | 2000 | 2600 |
| Note: Capacity is calculated based on a material density of 0.9g/cm³ | ||||||||
Specifications for the pot body:
| Model Name | P100-S | P100 | P150 | P200 | P250 |
|---|---|---|---|---|---|
| Production Capacity (kg/h) | 1.5-15 | 1.5-15 | 15-150 | 45-450 | 75-750 |
| Granulation Speed (rpm) | 50-1500 | 50-1500 | 50-1500 | 50-1000 | 50-100 |
| Motor Power (kw) | 2.0 | 1.5 | 2.2 | 3.7 | 5.5 |
| Replaceable Mesh Size (mm) | 0.3, 0.5, 0.6, 0.9, 1.2, 1.5, 2.0, 2.5, 3.0, 1×1, 2×2, 8×8 | ||||
| Power Supply | 220V/50Hz Single-phase 3-wire | 380V/50Hz Three-phase 5-wire | |||
| Air Source Pressure (Mpa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Overall Dimensions (mm) | 750×480×880 | 800×600×1200 | 800×600×1200 | 1000×800×1450 | 1000×800×1450 |
| Machine Weight (kg) | 70 | 130 | 150 | 250 | 300 |
Features of Tablet Film Coating Machines Supplied by Tin Nghi Dac
Tin Nghi Dac provides high-performance coating machines designed for pharmaceutical industry requirements.
Advanced Coating Technology
The equipment uses precision spray systems and intelligent airflow control to ensure even coating across all tablets. This results in consistent quality and improved production efficiency.
Stainless Steel GMP Design
Machines are manufactured with high-grade stainless steel materials, meeting GMP (Good Manufacturing Practice) standards. This ensures hygiene, durability, and easy cleaning.
Automated Control System
The machines are equipped with modern PLC control systems that allow operators to monitor and adjust parameters such as temperature, airflow, and spray rate in real time.
Energy Efficient Operation
Optimized airflow and heating systems reduce energy consumption while maintaining stable operating conditions.
Flexible Production Capacity
The machines are suitable for both small laboratory batches and large-scale pharmaceutical production lines, providing flexibility for different manufacturing needs.
Applications in Pharmaceutical Production
Tablet film coating machines are widely used in pharmaceutical factories for various applications:
-
Coating tablets with protective film layers
-
Enteric coating for delayed drug release
-
Taste masking coatings
-
Controlled-release pharmaceutical formulations
-
Nutraceutical and supplement tablet coating
By integrating modern coating machines into production lines, pharmaceutical companies can significantly improve both product quality and manufacturing efficiency.
Why Choose Tin Nghi Dac Pharmaceutical Equipment Co., Ltd.?
There are many reasons why pharmaceutical manufacturers choose Tin Nghi Dac as their equipment supplier.
Reliable Equipment Supply
The company offers high-quality pharmaceutical machinery that meets strict industry standards.
Technical Support
Tin Nghi Dac provides professional consultation, installation guidance, and technical support for customers during equipment setup and operation.
Competitive Pricing
Customers receive cost-effective solutions without compromising equipment quality and performance.
Experience in Pharmaceutical Industry
With extensive experience in supplying pharmaceutical equipment, Tin Nghi Dac understands the technical requirements of modern pharmaceutical manufacturing plants.
Installation and Supply Across Southeast Asia
Tin Nghi Dac Pharmaceutical Equipment Co., Ltd. not only supplies tablet film coating machines for pharmaceutical production lines in Vietnam, but also provides equipment supply, installation, and technical support services across Southeast Asia.
With experienced engineers and professional technical support, we are capable of delivering and installing pharmaceutical equipment for manufacturing plants throughout the region.
Our services are available in the following Southeast Asian countries:
-
Vietnam
-
Thailand
-
Malaysia
-
Singapore
-
Indonesia
-
Philippines
-
Cambodia
-
Laos
-
Myanmar
-
Brunei
-
Timor-Leste
We are committed to providing reliable pharmaceutical equipment, professional installation services, and long-term technical support for customers across Southeast Asia.
Commitment to Quality and Customer Satisfaction
Tin Nghi Dac is committed to delivering reliable equipment that helps pharmaceutical manufacturers achieve higher productivity and better product quality. The company focuses on long-term cooperation with customers by providing trustworthy products and professional service.
By supplying advanced tablet film coating machines, Tin Nghi Dac contributes to improving pharmaceutical production technology in Vietnam and supporting manufacturers in meeting international standards.
