APPLICATIONS: The C-series high-efficiency coater is primarily used for coating in the pharmaceutical and related industries. It can perform organic solvent-based or aqueous coating for tablets (micro-tablets), pills, candies, etc. Coating functions include, but are not limited to, sustained/controlled release, taste-masking, moisture protection, and aesthetic enhancement. The C-series is currently the most efficient coating equipment with the best uniformity. Tests show it can increase efficiency by approximately 50% compared to traditional equipment, and its uniformity meets the requirements for drug-layering content uniformity in small-specification products.

PRINCIPLE: The tablet cores perform continuous, regular tumbling motions within a clean, enclosed rotating drum. The C-series coating pan is equipped with multiple sets of ventilated 3D baffles, which significantly improve ventilation and mixing/guiding capabilities. As the pan rotates, the material forms a “waterfall flow.” The coating liquid is automatically sprayed onto the upper-middle section of this waterfall through an atomizing system. Clean hot air passes through the waterfall flow and is exhausted through the ventilation holes of the drum. This ensures the coating liquid on the core surface dries quickly and uniformly, forming a solid and smooth film. Under the same air temperature, higher ventilation capacity leads to stronger drying ability and higher coating efficiency.

FEATURES:

  1. Slotted Pan Holes: The drum features elongated slot holes, providing a higher opening rate under the same area conditions.

  2. Ventilated 3D Baffles: Multiple sets of ventilated 3D baffles provide a larger total opening area and lower air resistance.

  3. Conical Ventilation: The conical drum design with perforations provides greater drying capacity through enhanced ventilation.

  4. Seamless Integration: The mixing baffles and the drum are seamlessly connected, ensuring dead-zone-free flow and superior coating uniformity.

  5. Online Discharge: No extra discharge device is needed; the machine achieves easy and convenient discharge via reverse rotation.

  6. Superior Atomization: Independent liquid lines for spray guns with uniform flow; atomizing pressure and fan pressure are independently adjustable for stable performance.

  7. Universal Spray Bracket: Multi-directionally adjustable to adapt to changes in tablet load and drum speed.

  8. Anti-clogging Structure: The spray gun’s anti-clogging design ensures continuous coating, shortens process time, and saves coating materials.

  9. Precision Monitoring: Display and control of negative pressure in the pan, hot air flow rate, and material temperature.

  10. Online Cleaning (CIP): Optional CIP system available to reduce labor intensity.

  11. CGMP Compliance: Key process parameters feature memory and printing functions. Technical parameters are quantitatively displayed and controlled to ensure batch-to-batch consistency.

Technical specifications and key parameters of the test model:

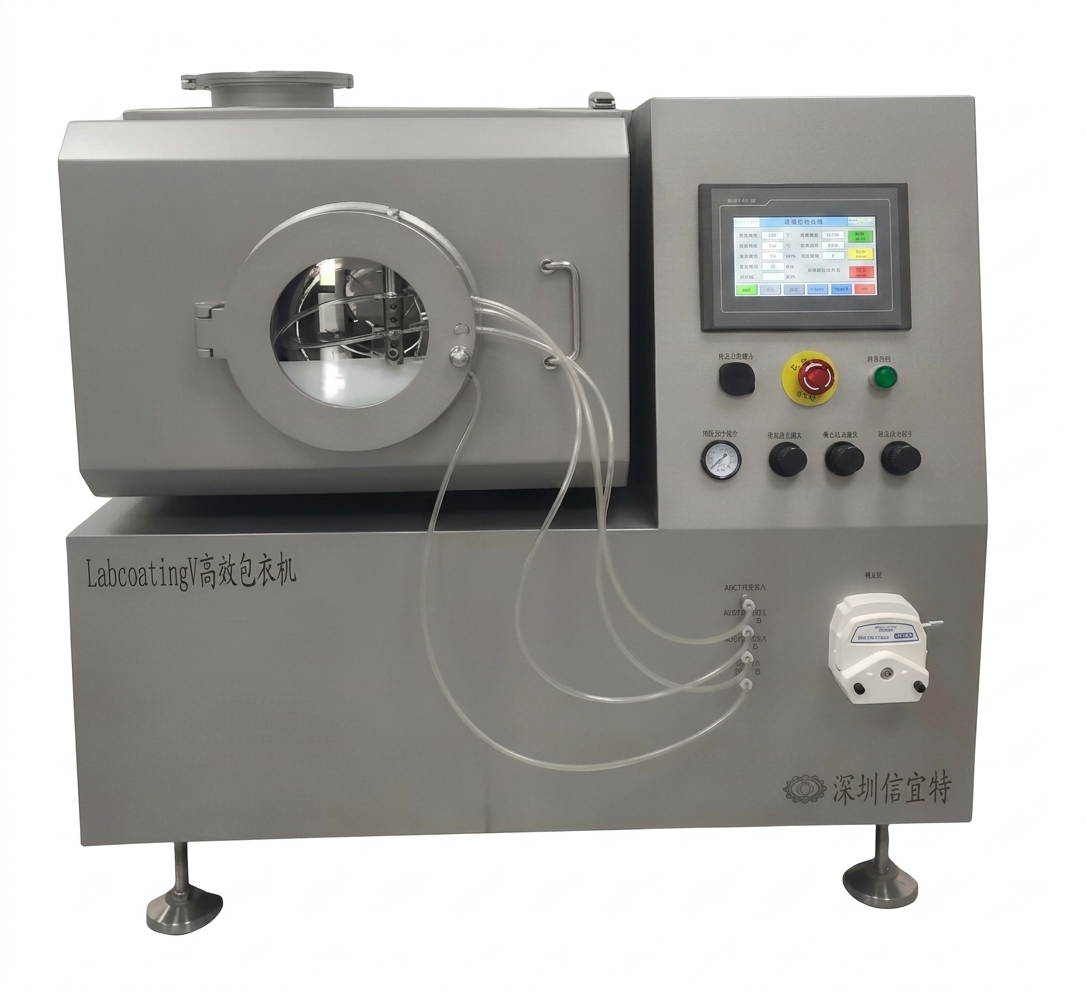

Model Name Labcoating I Labcoating II Labcoating III Labcoating IV Labcoating V
Capacity (kg/batch) 0.2-10 0.2-5 0.2-3 0.2-1.5 0.05-0.8
Coating Pan Specs (mm) φ215, φ265, φ300
φ350, φ380, φ430, φ480		 φ215, φ265, φ300
φ350, φ380, φ430		 φ215, φ265, φ300
φ350		 φ215, φ265, φ300 φ215s, φ215, φ265
Filtration System Primary, Intermediate, HEPA Intermediate Intermediate Intermediate —
Main Motor (kw) 0.75 0.4 0.4 0.4 0.4
Inlet Fan Speed (kw) 100-3000 (0.37kw 0.75kw (Explosion-proof)) 100-3000 (0.37kw 0.75kw (Explosion-proof)) 100-3000 (0.37kw 0.75kw (Explosion-proof)) 100-3000 (0.37kw 0.75kw (Explosion-proof)) 0.2KW
Exhaust Fan Speed (kw) 100-3000 (1.5KW) 100-3000 (1.5KW) 100-3000 (1.5KW) 100-3000 (1.5KW) 100-3000 (0.75kw)
Heating Power (kw) 10 7 6 4 3
Power Supply 380V/50Hz Three-phase 5-wire 220V/50Hz Single-phase 3-wire
Air Source Pressure (Mpa) 0.6 0.6 0.6 0.6 0.6
Air Consumption (m³/min) 0.6 0.4 0.4 0.4 0.4
Dimensions (mm) 850×1250×1855 820×1230×1750 810×1240×1670 810×1160×1590 960×730×910
Machine Weight (kg) 550 420 370 330 180

Specifications for the test planter body:

No. Coating Pan Name Quantity Capacity (kg/batch)
1 Coating Pan (215mm-S) 1 set 0.05 ~ 0.4
2 Coating Pan (215mm) 1 set 0.2 ~ 0.4
3 Coating Pan (265mm) 1 set 0.3 ~ 0.6
4 Coating Pan (300mm) 1 set 0.5 ~ 1.0
5 Coating Pan (350mm) 1 set 1.0 ~ 3.0
6 Coating Pan (380mm) 1 set 3.0 ~ 5.0
7 Coating Pan (480mm) 1 set 6.0 ~ 10

Production specifications and main technical parameters:

Model Name Pilot Coating I Pilot Coating II C75 C150 C250 C350 C450 C600
Capacity (kg/batch) 1.0-50 1.0-25 75 150 250 350 450 600
Pan Speed (rpm) 3-20 3-20 3-20 2-15 2-12 2-10 2-10 2-10
Main Motor Power (kw) 1.5 0.75 1.5 2.2 3.7 3.7 5.5 7.5
Clean Hot Air System Range: Room Temp – 80°C (±1°C), Filtration: 0.5μm HEPA, meeting Class 100,000 clean zone requirements
Inlet Fan Power (kw) 1.5 1.5 2.2 3.7 5.5 7.5 11 15
Exhaust Fan Power (kw) 2.2 2.2 3.7 5.5 7.5 11 15 18.5
Dust Removal Air Volume (m³/h) 1500 1500 1500 3000 4500 6000 8000 10000
Overall Dimensions (mm) 1340×1500×2430 1280×1410×2280 1200×1000×1800 1600×1400×2000 1800×1600×2000 2000×1800×2380 2000×2200×2380 2000×2400×2380
Main Body Weight (kg) 800 700 600 1000 1300 1700 2000 2600
Note: Capacity is calculated based on a material density of 0.9g/cm³

Specifications for the pot body:

Model Name P100-S P100 P150 P200 P250
Production Capacity (kg/h) 1.5-15 1.5-15 15-150 45-450 75-750
Granulation Speed (rpm) 50-1500 50-1500 50-1500 50-1000 50-100
Motor Power (kw) 2.0 1.5 2.2 3.7 5.5
Replaceable Mesh Size (mm) 0.3, 0.5, 0.6, 0.9, 1.2, 1.5, 2.0, 2.5, 3.0, 1×1, 2×2, 8×8
Power Supply 220V/50Hz Single-phase 3-wire 380V/50Hz Three-phase 5-wire
Air Source Pressure (Mpa) 0.4 0.4 0.4 0.4 0.4
Overall Dimensions (mm) 750×480×880 800×600×1200 800×600×1200 1000×800×1450 1000×800×1450
Machine Weight (kg) 70 130 150 250 300
