Fluid Bed Granulator – Efficient Granulation Solution for the Pharmaceutical Industry
Introduction to Fluid Bed Granulator
A Fluid Bed Granulator is one of the most widely used machines in modern pharmaceutical manufacturing. It is designed to perform mixing, granulating, and drying in a single system, significantly improving production efficiency and product quality.
In pharmaceutical production, granulation is a crucial process that transforms fine powders into uniform granules. These granules provide better flowability, compressibility, and stability, which are essential for manufacturing tablets and capsules.
Compared with traditional granulation methods, the fluid bed granulation technology offers faster processing, better uniformity, and reduced contamination risk. Because of these advantages, fluid bed granulators have become an important piece of equipment in pharmaceutical factories around the world.
What is a Fluid Bed Granulator?
A Fluid Bed Granulator is a pharmaceutical machine that uses heated air to suspend powder particles in a chamber while spraying a binder solution to form granules.
The machine works based on the fluidization principle. When hot air flows upward through the powder bed, the particles become suspended and behave like a fluid. At the same time, a spray nozzle distributes binder solution evenly across the moving particles, causing them to stick together and form granules.
This integrated process ensures that the granules produced have:
-
Uniform particle size
-
Good compressibility
-
Excellent flow characteristics
-
Stable moisture content
These properties are essential for high-quality pharmaceutical production.

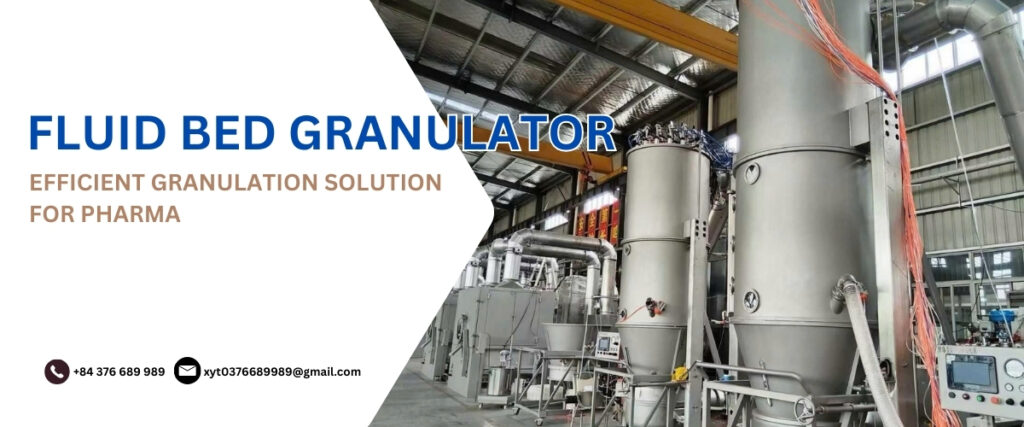

Fluidized bed granulator products supplied by Dac Nghi Tin Company.
Working Principle of Fluid Bed Granulator
The operation of a fluid bed granulator generally includes three main stages.
1. Powder Fluidization
Powder materials are placed inside the granulation chamber. Heated air is introduced from the bottom through a perforated plate, causing the powder particles to rise and move freely within the chamber. This process creates a fluidized state, allowing particles to mix uniformly.
2. Binder Spraying
A binder solution is sprayed into the chamber using a spray nozzle. As the droplets come into contact with the powder particles, they form liquid bridges that bind the particles together. This stage is responsible for initiating the granulation process.
3. Drying and Granule Formation
As the airflow continues, moisture evaporates from the wet granules. Solid bridges form between particles, resulting in stable and uniform granules. Once the granules reach the desired size and moisture level, the process stops and the final product is discharged.
Advantages of Fluid Bed Granulator
Fluid bed granulators offer several important benefits compared with traditional granulation methods.
High Production Efficiency
One of the biggest advantages is that mixing, granulating, and drying can be completed in a single machine. This significantly reduces production time and increases manufacturing efficiency.
Uniform Granule Quality
Because the particles are constantly suspended and mixed, the resulting granules have consistent size and density.
Better Flowability
Granules produced by fluid bed granulation have excellent flow properties, making them ideal for tablet compression and capsule filling.
Reduced Contamination Risk
Modern fluid bed granulators are designed as closed systems, which helps minimize dust emissions and contamination risks while meeting GMP pharmaceutical standards.
Lower Operating Costs
By integrating multiple processes into one machine, manufacturers can reduce equipment investment, labor costs, and energy consumption.
Applications in Pharmaceutical Manufacturing
Fluid bed granulators are widely used in the pharmaceutical industry for many applications, including:
-
Tablet granulation
-
Capsule granule preparation
-
Powder agglomeration
-
Drying of pharmaceutical materials
-
Production of instant or fast-dissolving medicines
In addition to pharmaceuticals, fluid bed granulators are also used in industries such as food, chemicals, and health supplements.
Key Features of Modern Fluid Bed Granulator
Modern pharmaceutical fluid bed granulators are equipped with advanced technology to ensure stable and precise operation. Typical features include:
-
PLC automatic control system
-
Touchscreen operation interface
-
Adjustable spray system
-
Precise temperature and airflow control
-
Stainless steel construction compliant with GMP standards
-
Easy cleaning and maintenance design
These features ensure consistent product quality and reliable production performance.
Why Choose Professional Pharmaceutical Equipment Suppliers
Choosing a reliable supplier for pharmaceutical equipment is extremely important. A professional manufacturer can provide high-quality machines, technical support, and customized solutions for pharmaceutical production lines.
High-quality equipment ensures:
-
Stable production processes
-
Compliance with GMP requirements
-
Long machine lifespan
-
Lower maintenance costs
Fluid Bed Granulator Coater
Technical specifications and key parameters of the test model:
| Model Name | Mini-XYT | XYT-I | XYT-III | XYT-V |
|---|---|---|---|---|
| Effective Volume (L) | 2 | 5 | 12 | 25 |
| Granulation Capacity (kg/batch) | 0.1 ~ 0.6 | 0.2 ~ 2.0 | 0.2 ~ 4.0 | 0.2 ~ 8.0 |
| Coating Capacity (kg/batch) | 0.05 ~ 0.4 | 0.1 ~ 1.5 | 0.1 ~ 3.0 | 0.3 ~ 5.0 |
| Fan Power (kw) | 1.5 | 2.2 | 5.5 | 7.5 |
| Heating Power (kw) | 1.5 | 9 | 12 | 15 |
| Power Supply | 220V/50Hz Single-phase | 380V/50Hz Three-phase 5-wire | ||
| Air Source Pressure (MPa) | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| Compressed Air Consumption (m³/min) | 0.4 | 0.6 | 0.6 | 0.6 |
| Equipment Dimensions (mm) | 910×710×1540 | 1400×790×2045 | 1580×830×2065 | 1850×1100×2445 |
| Machine Weight (kg) | 150 | 550 | 750 | 950 |
Manufacturing specifications and key technical parameters:
| Thiết bị / Model | XYT-15 | XYT-30 | XYT-60 | XYT-120 | XYT-200 | XYT-500 |
|---|---|---|---|---|---|---|
| Thể tích hiệu dụng (L) | 100 | 150 | 215 | 450 | 620 | 875 |
| Năng suất tạo hạt (kg/mẻ) | 5-15 | 10-30 | 30-60 | 50-120 | 100-200 | 200-500 |
| Năng suất bao phim (kg/mẻ) | 4-14 | 8-28 | 25-55 | 45-110 | 90-180 | 200-500 |
| Công suất quạt gió (kw) | 7.5 | 11 | 18.5 | 37 | 45 | 75 |
| Công suất gia nhiệt (kw) | 30 | 48 | 81 | 126 | 144 | 180 |
| Tổng công suất (kw) | 37.5 | 59 | 98.5 | 163 | 189 | 255 |
| Nguồn điện | 380V/50Hz 3 pha 5 dây | |||||
| Áp suất khí (MPa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Lưu lượng khí nén (m³/min) | 0.6 | 0.9 | 1.2 | 1.8 | 3.0 | 4.0 |
| Kích thước thiết bị (mm) | 1000×1200×3000 | 1200×1300×3200 | 1710×1560×3960 | 1970×1700×5040 | 2300×2000×5620 | 2610×2250×8000 |
| Trọng lượng máy (kg) | 2200 | 2500 | 3000 | 4000 | 5000 | 6000 |
| Ghi chú: Năng suất được tính toán dựa trên khối lượng riêng của nguyên liệu là 0.3g/cm³ | ||||||
Conclusion
The Fluid Bed Granulator is an essential machine for modern pharmaceutical manufacturing. By combining mixing, granulating, and drying into a single process, it improves efficiency while producing high-quality granules with consistent properties.
For pharmaceutical companies seeking reliable granulation technology, investing in a fluid bed granulator is a smart and cost-effective solution that enhances productivity and product quality.
